CYCLONE MAX
select the CM (Choose Module) command from the Programming Sequence
list (1) and add it to the programming steps (2) using the add button (3).
Similarly, to specify the S-Record to be programmed into the target, the user
may simply select the SS (Specify S-Record) command from the
Programming Sequence list (1) and add it to the programming steps (2) using
the add button (3).
See Figure 2-1 for a visual reference.
4.1.4
4.1.5
Base Address
Depending on the programming algorithm, the user may be required to enter
the base address for the module. If the programming algorithm requires a
base address, the Module Base Address Settings will be displayed. The user
must enter the correct base address. Otherwise, the default value (0) shown
in the diagram will be used.

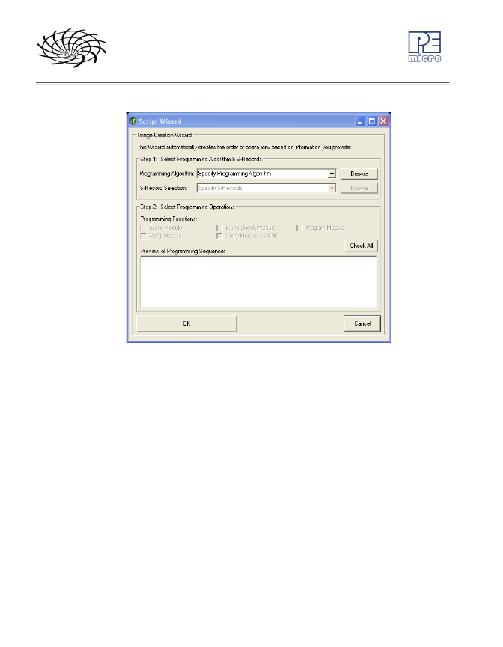

Script Wizard
The Script Wizard is a convenient addition to the Cyclone Image Creation
Utility. The Script Wizard allows the user to simply select the programming
functions to be executed. The Script Wizard then orders these functions
automatically.
To begin, click the Launch Script Wizard button on the right side of the
Cyclone Image Creation Utility. This opens the Script Wizard.
Cyclone MAX User Manual
27
